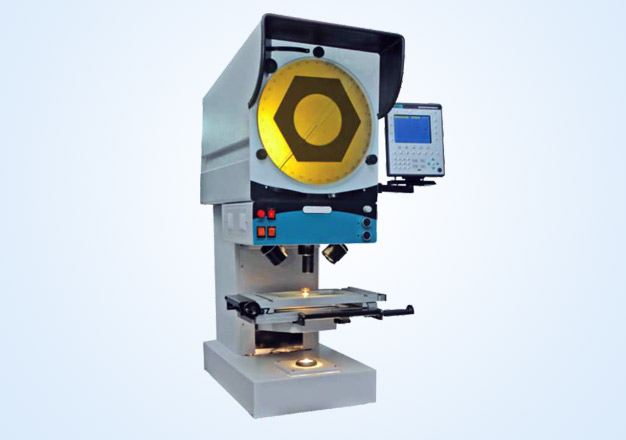

Vertical Screen Profile Projectors

vertical-screen-profile-projectors
Request a Quote


  • Models V30 / V36 / V40
  • Screen Size 300 / 360 / 400mm
  • Choice of workstage

  • Size of Table
    170 x 170mm
    300 x 150mm
    400 x 200mm
    400 x 300mm
    Traverse X & Y axis
    25 x 25mm micrometer
    150 x 75mm
    200 x 100mm
    275 x 175mm

  • Vertical traverse - 100mm with motorized movement
  • Choise of telecentric lens : 10X / 20X / 50X / 100X with indexable turret to hold 3 lens.

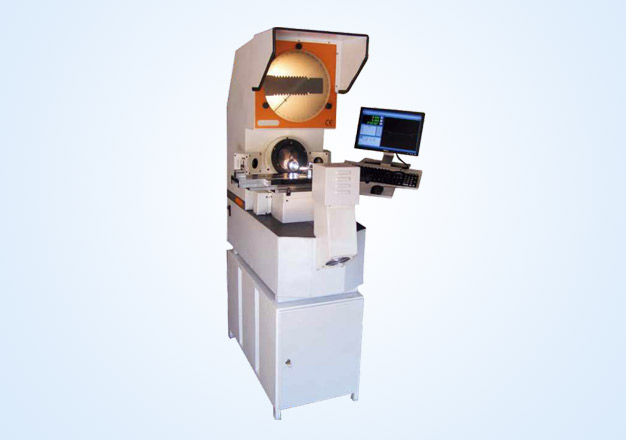

Horizontal Screen Profile Projectors

horizontal-screen-profile-projectors
Request a Quote


  • Models H30 / H36 / H40
  • Screen Size 300 / 360 / 400mm
  • Choice of workstage

  • Size of Table
    400 x 150mm
    500 x 150mm
    600 x 150mm
    Traverse X & Y axis
    200 x 75mm
    200 x 75mm
    300 x 100mm

  • Helix Tilting +/- 15 degrees, for measuring threads movement.
  • Choice of telecentric lens : 10X / 20X / 50X / 100X with indexable turret to hold 3 lens.

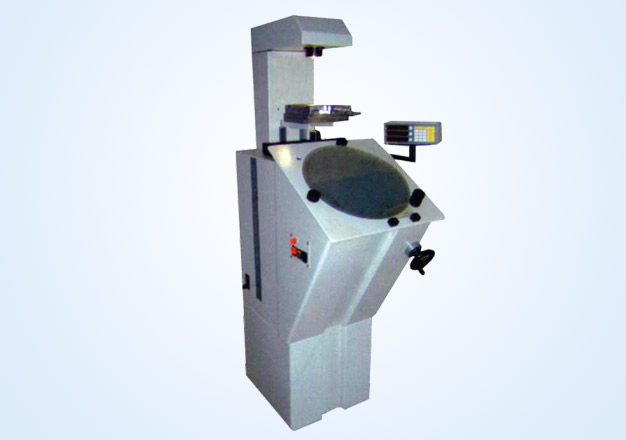

Vertical Slant Screen Profile Projectors

vertical-slant-screen-profile-projectors
Request a Quote


  • Models VSS30 / VSS36 / VSS40
  • Screen Size 300 / 360 / 400mm
  • Choice of workstage

  • Size of Table
    170 x 170mm
    300 x 150mm
    400 x 200mm
    Traverse X & Y axis
    25 x 25mm micrometer
    150 x 75mm
    200 x 100mm

  • Choice of telecentric lens : 10X / 20X / 50X / 100X
