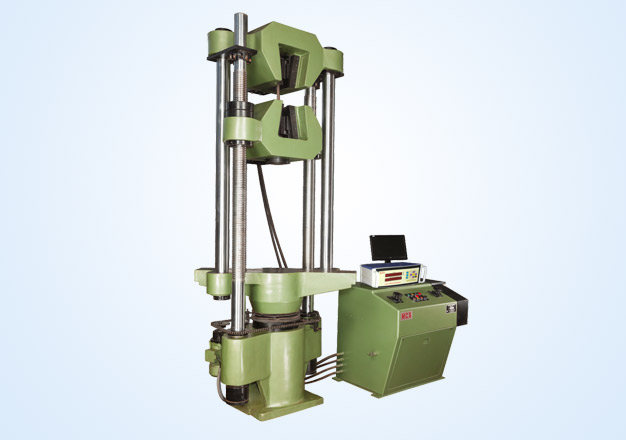

Computerized Servo Control Universal Testing Machines Manufacturer
We are Manufacturer, Supplier, Exporter of Computerized Servo Control Universal Testing Machines and our setup is situated in Kolhapur, Maharashtra, India.
Features :
- Front loading crosshead with easy grip changing
- Hydraulic gripping with in-built power pack
- Servo control operation for load/strain rate control
- Manual as well as computerized control
- High temperature testing up to 1200°C.
- Conforms to IS:1828, ASTM E8 Standards

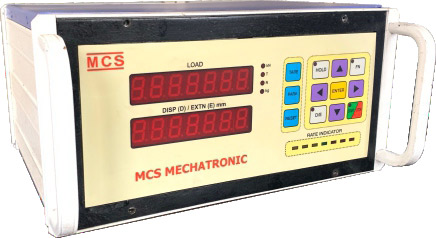

The Controller MCS-MC01 :
- Latest flash micro controller with High speed data sampling
- Built in real time clock for date and time
- In built 4 channel data acquisition, expandable to 8 channel
- Load measurement using high precision pressure cell.
- 24 bit multiplexed ADC with 1/ 100000 counts for load.
- Displacement measurement by rotary encoder, Resolution 0.01mm
- Digital display of Load, Displacement, Extension, speed, Time
- Auto calibration for load, displacement and extension.
- Closed loop PID mechanism for precise load rate control.
- Stand alone machine operation from keyboard without computer
- Stepper motor/ servo valve interface for load/ strain rate control
- Sealed membrane keypad for data entry and running the test.
- In built 232/ USB port for real time data transfer to computer.
- Memory for storage of calibration factors & machine settings.
- Over load, over travel protection for all types of testing needs
MODEL |
Unit |
UTE-FLG-10 |
UTE-FLG-20 |
UTE-FLG-40 |
UTE-FLG-60 |
UTE-FLG-100 |
UTE-FLG-150 |
UTE-FLG-20C |
Measuring capacity |
(kN) |
100 |
200 |
400 |
600 |
1000 |
1500 |
2000 |
Measuring range |
(kN) |
0-100 |
0-200 |
0-4000 |
0-600 |
0-1000 |
0-1500 |
0-2000 |
Load Resolation |
(N) |
10 |
20 |
40 |
60 |
100 |
100 |
200 |
Least count |
(kN) |
0.005 |
0.010 |
0.020 |
0.030 |
0.050 |
0.075 |
0.100 |
Load range in KN with Accuracy of measurement ± 1% |
2 to 100 |
4 to 200 |
8 to 400 |
12 to 600 |
20 to 1000 |
30 to 1500 |
40 to 2000 |
|
Resolution of piston movement |
(mm) |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
Max. tensile clearance at fully descended piston position |
(mm) |
50 to 700 |
50 to 700 |
50 to 700 |
50 to 800 |
50 to 850 |
50 to 900 |
50 to 900 |
Maximum clearance for compression test |
(mm) |
0-700 |
0-700 |
0-700 |
0-800 |
0-850 |
0-900 |
0-900 |
Distance between columns |
(mm) |
500 |
500 |
500 |
600 |
750 |
750 |
850 |
Piston stroke |
(mm) |
150 |
200 |
200 |
250 |
250 |
250 |
300 |
Maximum straining speed at no load |
(mm/min) |
0 - 300 |
0 - 150 |
0 - 150 |
0 - 100 |
0-80 |
0-80 |
0-45 |
Power Supply 3 Phase 415 V 50/60 Hz A.0 |
||||||||
K.W (Total) |
1.0 |
1.0 |
1.7 |
1.9 |
2.6 |
4 |
4.9 |
|
Machine dimensions (Approx- L x W x H) |
(mm) |
2032x750x1960 |
2032x750x1960 |
2060x750x2180 |
2265x750x2534 |
2415x8150x2900 |
2400x815x3000 |
3000x1200x3000 |
Machine Weight (Approx) |
kg |
1500 |
1500 |
2500 |
3500 |
4500 |
5500 |
9500 |
Standard Accessories |
||||||||
Tensile test Clamping jaw for Round specimens of diameter |
(mm) |
10 - 20 |
10 - 20 |
10 - 25 |
10 - 25 |
10 - 25 |
10 - 25 |
20 - 40 |
(mm) |
20 - 30 |
20 - 30 |
25 - 40 |
25 - 40 |
25 - 45 |
25 - 45 |
40 - 60 |
|
(mm) |
- |
- |
- |
40 - 55 |
45 - 70 |
45 - 70 |
60 - 80 |
|
Tensile test Clamping jaw for flat specimen |
0 - 10 |
0 - 10 |
0 - 15 |
0 - 15 |
0 - 22 |
0 - 22 |
0 - 20 |
|
Thickness |
mm |
10 - 20 |
10 - 20 |
15 - 30 |
15 - 30 |
22 - 44 |
22 - 44 |
20 - 45 |
- |
- |
- |
- |
44 - 65 |
44 - 65 |
45 - 90 |
||
Width |
mm |
50 |
50 |
65 |
70 |
70 |
70 |
90 |
Compression plates pair dia |
(mm) |
120 |
120 |
120 |
160 |
160 |
160 |
220 |
| Transverse test Table with adjustable rollers | ||||||||
width of roller |
mm |
160 |
160 |
160 |
160 |
160 |
160 |
200 |
Diameter of roller |
mm |
30 |
30 |
30 |
50 |
50 |
50 |
70 |
Maximum clearance between supports |
mm |
500 |
500 |
500 |
600 |
800 |
800 |
900 |
Radius of punch tops |
mm |
6, 12 |
6, 12 |
12, 16 |
16, 22 |
16, 22 |
16, 22 |
30, 40 |
