Digital Spring Testing Machines - For Engineering Colleges

We are Manufacturer, Supplier, Exporter of Horizontal Chain and Rope Testing Machines and our setup is situated in Kolhapur, Maharashtra, India.

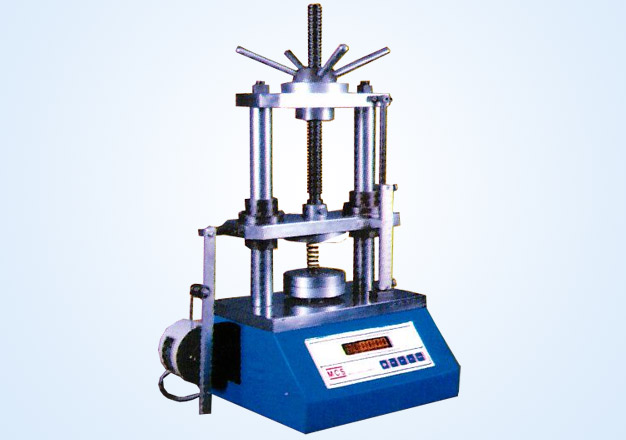

Introduction
MCS range of spring testing machines are used for quick and accurate testing of tension and compression springs. The machine comprises of two hard crome plated cclomns with fine cut single screw with hand wheel for manual loading and unloading arrangement. The machine uses a high pricision load cell for measurement of force. For displacement measurement, mechanical linear scale or digital vernier caliper or rotary encoder is used. Measuring system of machine is based on latest microprocessor based electronics with tare facility.

Options
• Digital vernier scale with 0.01 mm resolution for displacement indication ( 6" or 12")
• Rotary encoder with separate digital unit 0.1 or 0.01 mm resolution
• 9 / 24 pin Dot-Matrix printer interface
• Serial interface hardware with data transfer software to computer
• Motorised loading operation.

Features
• Microprocessor based unit
• Force Measurement Accuracy +/- 1 % of indicated load or 0.5 % of full load value whichever is higher
• Quick and accurate measurement
• Interchangeable load cells
• Modulus data for load & displacement
• Optional Dot-Matrix printer interface
• Optional RS-232 Computer interface with window based software.

Technical Specification
Model MCS-STM20 MCS-STM200 MCS-STM500
Maximum Capacity 20 kg, 10 kg, 5 kg 200 kg. 100 kg, 50 kg. 300 kg. 500 kg
Width between colomns 160 mm 160 mm 250 mm
Maximum cross head travel 160 mm 160 mm 250 mm
Force measuring resolution 1 gm 10 gm 0.1 kg.

Displacement Measuring Resolution
Type
Range
Resolution
Mechanical Scale - (standard)
0-150 mm
1.00 mm
Digital Vernier Gauge - (Optional)
0-150 mm
0.01 mm
Rotary Encoder - (Optional)
0-150 mm
0.10 mm / 0.01 mm

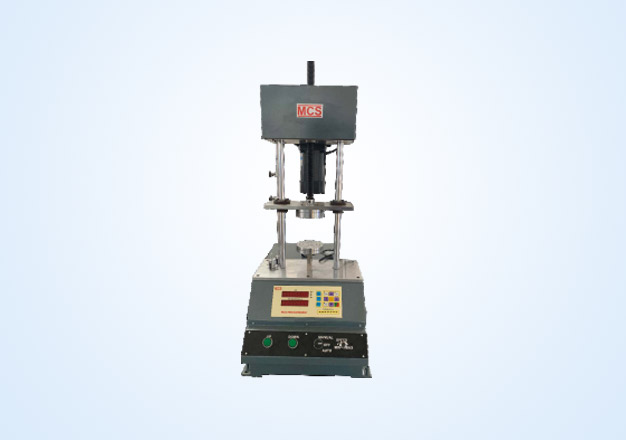

Motorized Spring Testing Machines (Motorised Spring Testers)

Features
  • Spring Testing machine for Tensile and Compression application.
  • Variable frequency drive for operating at different speeds.
  • Table Top machine.
  • Digital display of Load and Displacement.

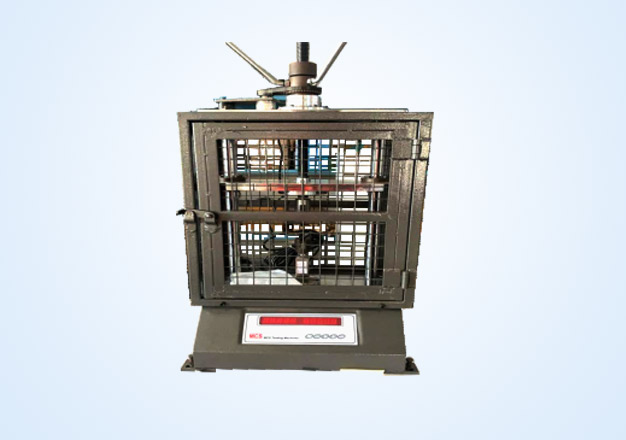

Manual Spring Testing Machines
Features
  • Table top spring testing machine.
  • Use of machine for tensile and compression spring.
  • Mode of Operation: Manually using hands.
  • Digital display of Load and Displacement.
  • Protective cage to avoid accidents.

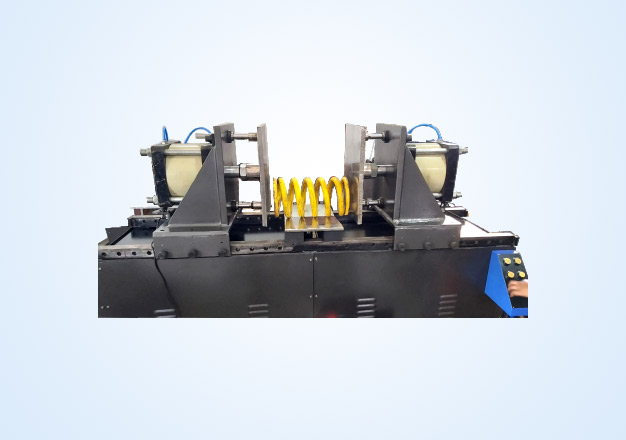

High Temperature Horizontal Spring Testers
Features
  • High Temperature Horizontal Spring testing machine.
  • Use of pneumatic cylinders for compression.
  • Adjusting of compression stroke using digital display.
  • Can compression hot springs up to 800 degrees.
  • Automatic opening to dump the spring in to oil bath.

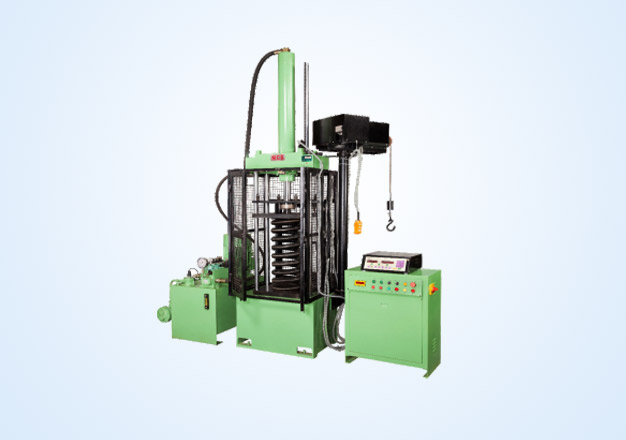

Hydraulic Load Deflection Coil Spring Testing Machines
Features
  • Load deflection testing machine.
  • Majorly used for testing of Coil Springs.
  • Capacity of machine up-to 30 Ton.
  • Load measurement using Load cell and Displacement measurement using Magnetic scale.
  • Fully Automatic operation of spring testing machine.

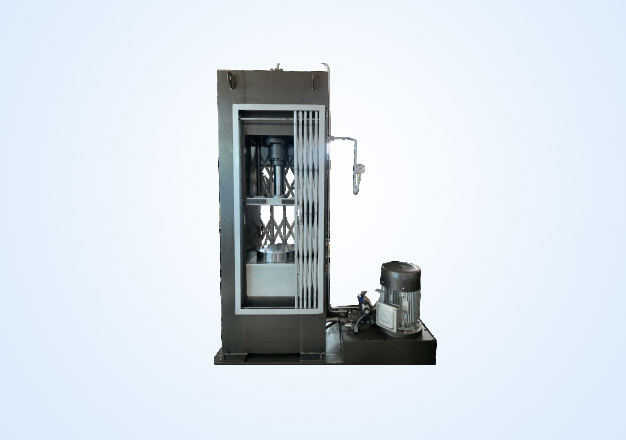

Endurance / Scragging Spring Testing Machines
Features
  • Endurance Spring Testing machine for cyclic testing.
  • Setting of Solid length and adjusting number of cycles.
  • Digital display to configure number of cycles.
  • Machine capable to testing up to 100 Ton.
  • Machine can perform 1 million cycles.
