Impact Testing Machine

General Discription :

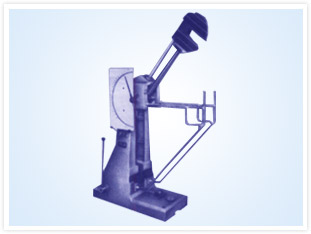

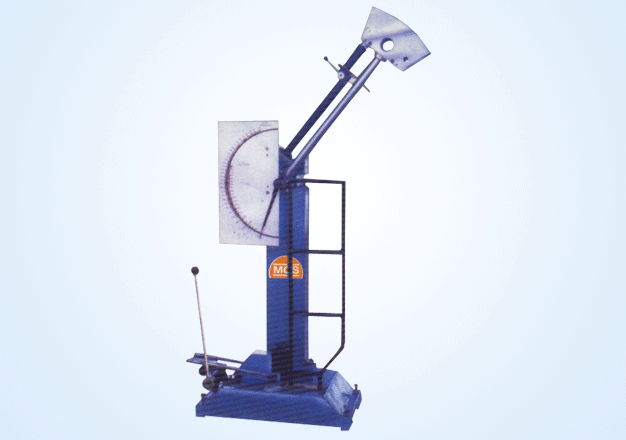

MCS make Pendulum type Imapct Testing Machine Model MIT-30 is designed fro conducting Izod & Charpy test. The test confirms to BS:131: PART IV 1972 (1993) BSEN:1993

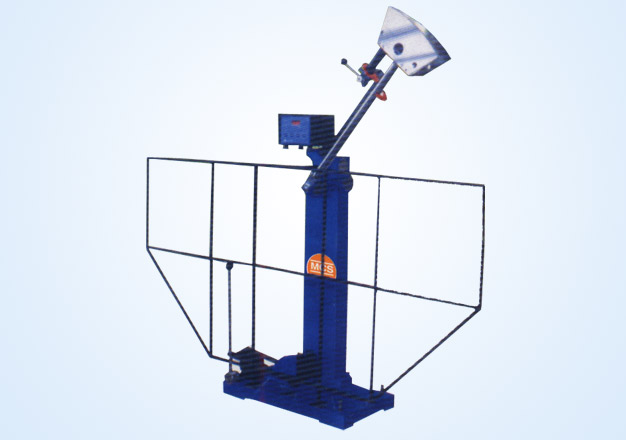

The pendulum is mounted on antifriction bearing. It has two starting positions, for Charpy test pendulum swings down to breack the specimen and the enery absorbed in the specimen is between height of drop before rupture and the height of rise after rupture of test specimen. The reading is shown on dial scale from maximum pointer positon. MCS has developed electronic model MIT - 30 (E) microprocessor based panel with digital display. The reading is directly available on digital display. It aslo provided printer interface.

There are two strikers and one combined support available for fitting in to the pendulum and on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achieved simply by fixing the new striker into it's position.


Impact Testing Machines

Charpy Test :
The charpy test piece rests alloy steel support anvils, fitted on the base of the machine rigidly held in position by allen screw End stopper is provided for quickly and accurately locating the test piece centrally between the supports
IZOD Test :
The izod test piece is clamped vertically in izod support fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & the Allen screw enable clamping of the test piece incorrect height with the help of izod setting gauge supplied.
Model : MIT - 30 (ASTM)
The impact tester offered with 300 J energy exclusively for Charpy test confirming to ASTM E-23. This machine is geometrically checked in the works to the more stringent requirements of the American standard the accuracy of the machine is then verified by PROOF TEST by testing standard test specimens supplied by the NIST, USA. All two sets of the live specimen must agree with the normal values within certain tolerance specified.

Standard Accessories :
Model MIT - 30 MIT - 30 E MIT - 30 (ASTM) Charpy Test MIT - 1.5 MIT - 0.5
Maximum Capacity 300 J / 168 J 300 J / 170 J 300 J 15 J 5 J
Minimum Scale Graduation
2 J 0.5 J 2 J 0.1 J 0.05 J
Overall Size (Approx)
1.65 m (H)
1.1 m x 0.45 mx
1.32 m X 0.45 m X
165 m (H)
1.4 x 0.5 m x
1.9 m (H)
0.5 x 0.3 m x
0.52 m (H)
0.5 x 0.3 m x
0.52 m (H)
Net Weight (Approx)
375 kg. 375 kg. 450 kg. 70 kg. 70 kg.


Optional Accessories for MIT 30 / MIT 30 E :
Izod support for 0.450" dia Izod round specimen. Self centering long quick and accurate setting of Charpy test sepcimen
"V" notch milling cutter
"U" notch milling cutter

Caliper gauge for checking V notch for Izod & Charpy Templates for checking 10 X 10 mm, corss section of Izod / Charpy test sepcimen Depth notch V & U notch gauge for checking depth below V / U notch angle and radius.
