Automatic Spring Testing Machines - For Indian Railways

We are Manufacturer, Supplier, Automatic Spring Testing Machines and our setup is situated in Kolhapur, Maharashtra, India.

• Good for testing laminated and coil springs.
• Load indication on large dial and deflection indication on electronic digital display with 0.1 mm least count.
• Autographic elongation recorder.
• Various models - Max load capacity from 6 to 50 Tone
• Loading accuracy well within + 1%

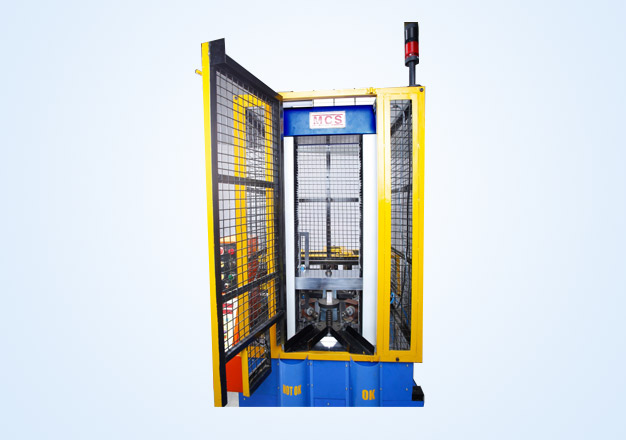

MCS- STM Spring Tester provides tension and compression testing with precision hand wheel and drive mechanism for gradual repeatable force application.
Force and deflection data are displayed on 7 segment / LCD display. MCS Spring Testing software provides easy test set-up and user friendly data logging and graphing of force Vs Deflection for accurate spring testing.


  • Rugged and exceptionally rigid extruded steel columns.
  • Precise hand wheel tension&compression testing
  • Use of high precision industrial Load cell
  • Travel measurement by rotary encoder,magnetic/glass scale.
  • Automatic operation with precise speed control.


  • Latest micro controller based design.
  • Digital display of load and deflection.
  • Load resolution : 1/20000
  • Load Measurement by high precision Strain gauge type load cells.
  • Deflection resolution : 0.01 mm
  • Deflection measurement by rotary encoder, magnetic/glass scale.
  • Accurate Speed control from 0.1 to 500mm / min

  • Display of peak force and average spring rate.
  • Auto calibration of load and deflection
  • Safety features, auto-visual alarm and auto cut-off
  • Modular data input/output
  • In built RS232/USB port for data from to PC Built in data logging facility (optional)
  • PC based software (optional)
