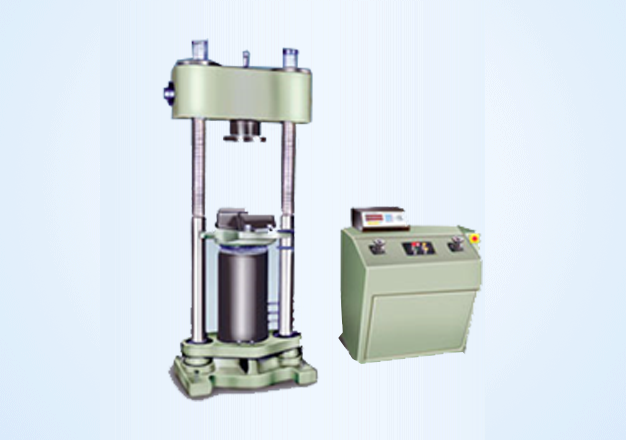

Compression Testing Machine
We are Manufacturer Supplier Exporter of Compression Testing Machines ( CTM ), Automatic Compression Testers ( ACTM ), Automatic Concrete Compression Testing Machines / Automatic Concrete CTM, Digital Compression Testing Machines ( Digital CTM ), Micro Controlled CTM, Load Rate Controlled CTM, Pace Rate Controlled CTM from Kolhapur Maharashtra India. We are NABL Calibrator and provide Upgradation, Calibration Services also.
| Compression Test | Spec. | Flexure Test | Spec. |
| Max.Load (kN) | 300/250 | Max.Load(kN) | 10-25 |
| Constant Speed tracking points (kN) | 0-300 | Constant Speed tracking point (kN) | 0-10 |
| Constant loading Speed (kN/s) |
2.4±2.5% | Constant loading Speed (N/s) | 50 |
| Diameter of upper and lower Platen (mm) |
Ф125 | Max.travel of lower bearing Plate (mm) | 20 |
| Distance between upper amd lower bearing plates (mm) |
233 | Distance between upper amd lower bearing plates (mm) | 185 |
| Indicating value repeatability error (%) | ±1 | Main Motor Power (W) | AC 750 |
| Indicating value repeatability error (%) |
1 | Elevating motor power (W) | DC 100 |
| Zero-return relative error (%) | ±0.1 | Power Supply | 220V, 1PH, 50HZ |
| Load Resolution (%) | 0.5 | Dimension (mm) | 1300x600x1450 |
| Zero excursion (%) |
0.1 | Weight (kg) | 330kg |
